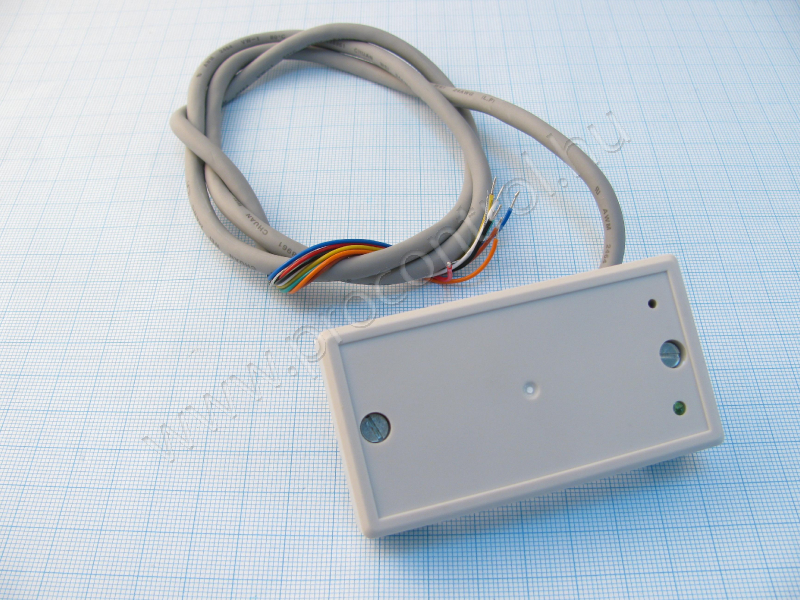

GP20-10 125kHz RFID Leser

Kurzbeschreibung

GP series RFID readers are high performance proximity RFID readers featuring long range and small dimensions. The readers run from any voltage from 5 to 12.5 VDC and feature high read range at as low as 5 volts making it ideally suited to a wide variety of applications, particularly access control. The same basicRFID unit can be configured to output most of the common interface formats, including Wiegand, Magstripe, Clock/ Data and RS-232 serial ASCII output, making it easy to upgrade existing installations.

Eigenschaften

• Power Requirements: 5 ~ 12.5 V DC regulated, linear

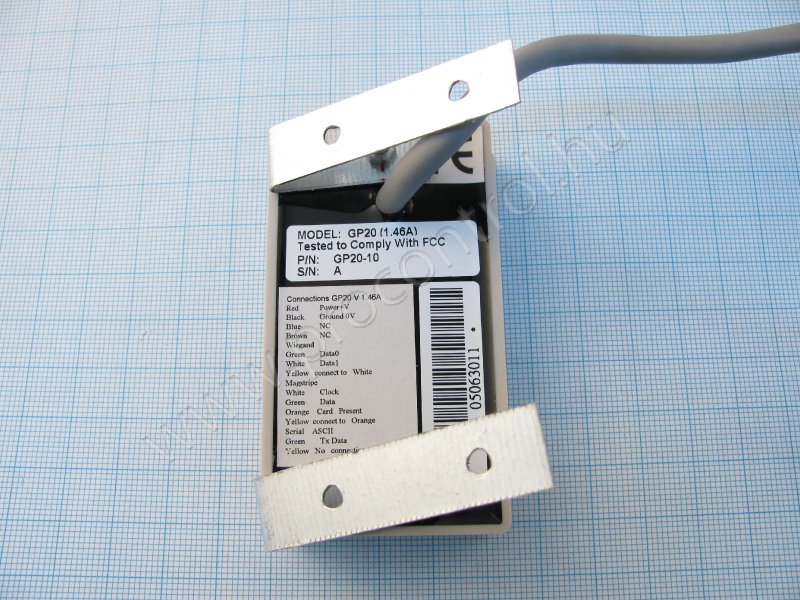

• Interfaces: Wiegand, Magstripe, Clock/ Data and RS-232 serial ASCII output,
• Read Range:
• - GP8: Up to 7 cm without external antenna with ISO card; up to 30 cm with proper external antenna
• - GP20: Up to 13 cm at 5V with ISO card; up to 20 cm at 12.5V
• - GP30: Up to 20 cm at 5V with ISO card; up to 30 cm at 12.5V
• Frequency: 125KHz, ASK
• Format: 64 bits, Manchester coding
• Transponder: Read only
• Dimensions:
• - GP8 – 41 x 24 x 10 mm
• - GP20 – 78 x 43 x 15 mm
• - GP30 – 104 x 63 x 20 mm
• Temperature Range:
• - Readers: -25 ~ 65°C
• - Transponders: -55 ~ 80°C

Mentés

Technische Beschreibung

Wide voltage range
• Potted for environmental protection
• Externally programmable interface
• Weather resistant

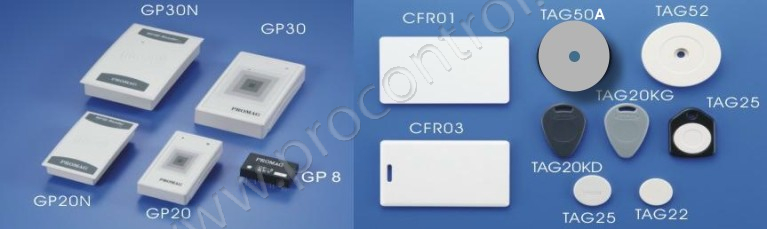

Typen

GP8 – Small reader module for OEM applications

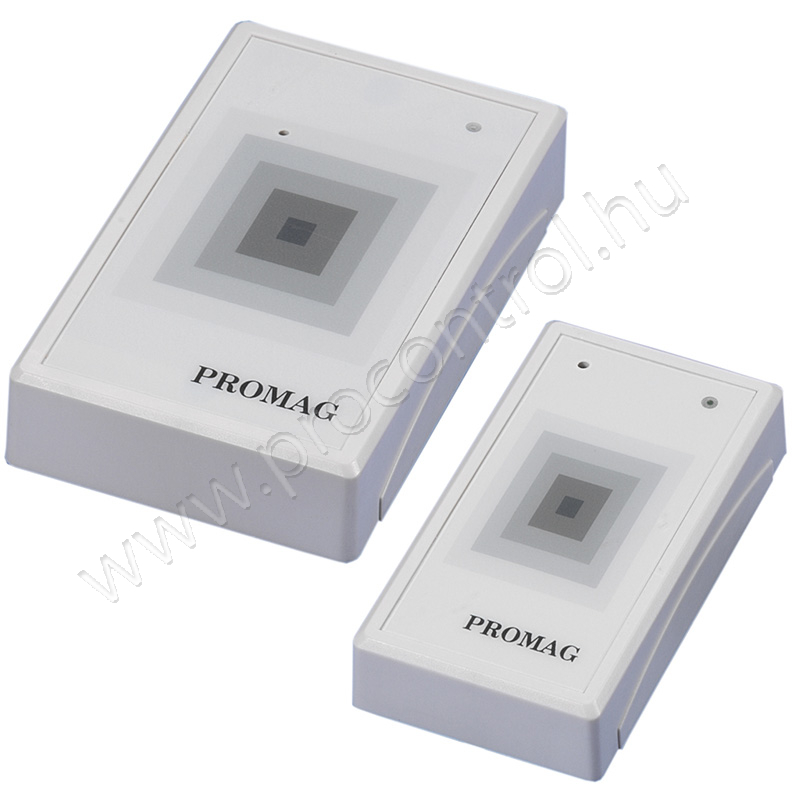

GP20 – Up to 20 cm read range, wall-mounting
GP30 – Up to 30 cm read range, wall-mounting
GP60A – Up to 60 cm read range, wall-mounting
GP90A – Up to 90 cm read range, wall-mounting

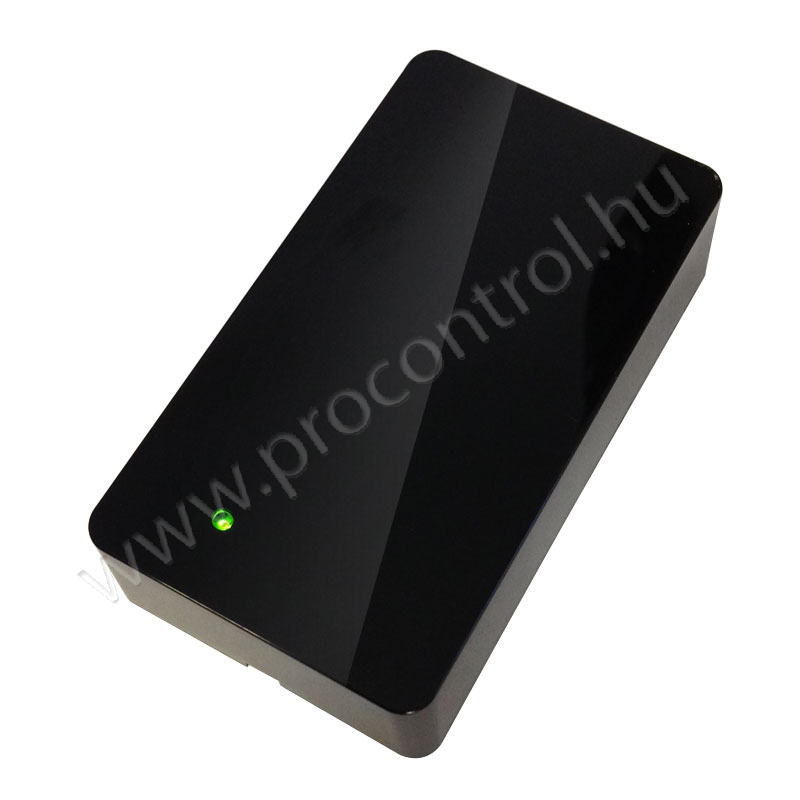

The GP20P has the same reliable 125kHz RFID reader as our GP20 on the inside but has a more attractive, modern gloss "Piano black" finish.
