GWInstek DAQ-908 kapcsolómodul DAQ-9600 adatgyűjtő rendszerhez

Kurzbeschreibung

The DAQ-9600 data acquisition system is a modularized data acquisition system with high flexibility and higher performance. The mainframe is equipped with 3 module slots and a built-in precision 6 1/2 digital DMM is the core of its test and measurement. 6 modules are available to meet different measurement needs.

The modular structure of the DAQ-9600 provides 3 module slots and 6 optional modules, including general-purpose modules (DAQ-900/ DAQ-901), multi-function module (DAQ-903), matrix module (DAQ-904), switch module (DAQ-908) and high-voltage and high-current module (DAQ-909). Users can combine and match arbitrarily according to the measurement needs.

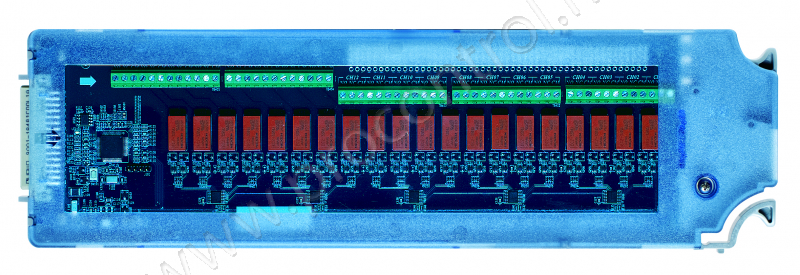

The DAQ-908 is a general purpose switch module with 20 independent single pole double throw (SPDT) relays, can be used for power cycling in DUTs, control indicator lights and status lights. DAQ-908 can also activate external power relays and solenoid valves. While combining DAQ-908 with matrix and multiplexer modules, switching systems can be customized. 300 V and 1 A contact can handle up to 50 W, which is sufficient for multiple powerline switching applications.

Mentés

Technische Beschreibung

CAUTION! To be able to operate the DAQ-908 Actuator/General Purpose Switch well, please update firmware
- DAQ-9600 Mainframe ~ Master to V1.04, Slave to V1.01 at least
- DAQ-Data Logger PC Software ~ V1.06 at least
