Card Reader Manager segédprogram Proxer7/X2/X3 RFID olvasókhoz

CARD READER MANAGER UTILITY for Proxer7/X2/X3 RFID readers

Kurzbeschreibung

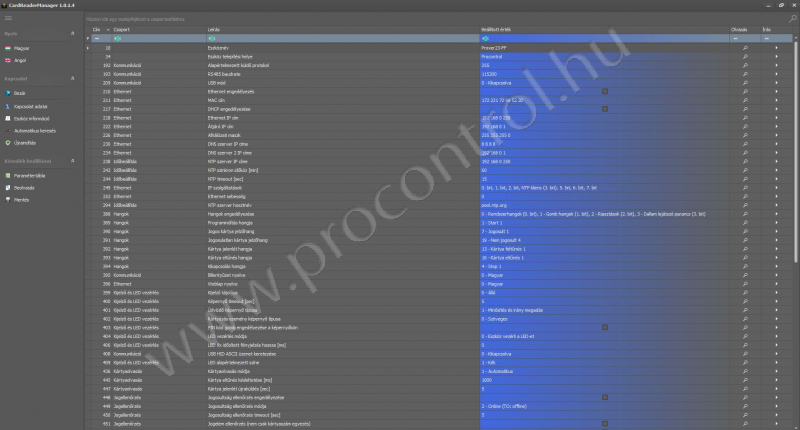

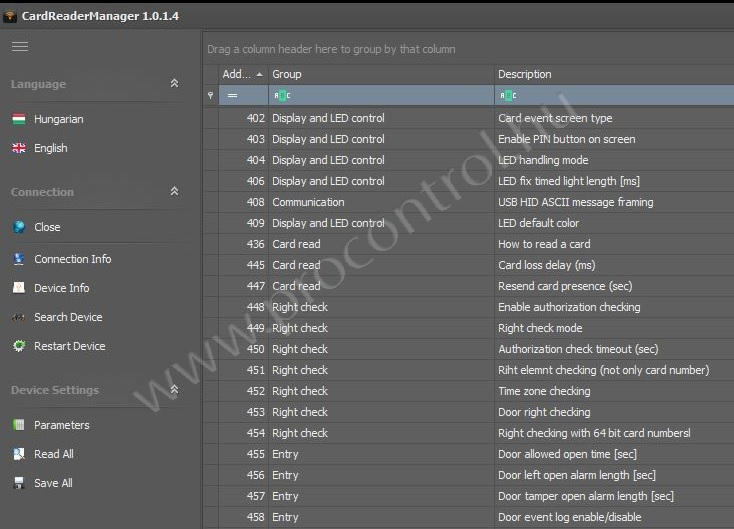

The CardReaderManager utility allows you to test the basic functions of the Procontrol card reader devices and adjust each parameter. You can scan the card number (UID), identify the card standard, and so on.

Mentés

Technische Beschreibung

Compatibility
1. CardReaderManager software is compatible with:
• with ProxerX2, X3 series readers - Proxer12 (1910), Proxer13 (electronics 2110), Proxer22 (el. 2027), Proxer23 (el. 2192-es) serial data connection - USB, RS232, RS485 - types.
• with Proxer7, Proxer78 (1616), ProxerW72 readers (electrics 1733) serial data connection - USB, RS232, RS485 - types.
The program is therefore compatible from the top with older Procontrol readers.
2. If you also use devices from older Procontrol reader series, it is important to know that the utility offered for them, Proxer7Manager, is not compatible with ProxerX2, X3 series readers - Proxer12, Proxer22 (1910, 2027), Proxer13, Proxer23 (2110, 2192):
• for the older Procontrol reader series (Proxer7, ProxerW72) we offer/offered the Prox-er7Manager program.
• Proxer7Manager is not compatible with Proxer12, Proxer13 readers.
• Proxer12, Proxer13 reader firmware detects when trying to configure with Proxer7Manager and disables communication

Funktionen

• Scan card number (UID)
• Identification of the standard of the card
• Prefix can be entered up to 200 characters in total, including the card number.
• The desired data output format can be specified by the user: decimal, hexadecimal, shift, facility code, prefix, spec. insert characters, enter, etc.
• Individual data output settings do not require firmware replacement
