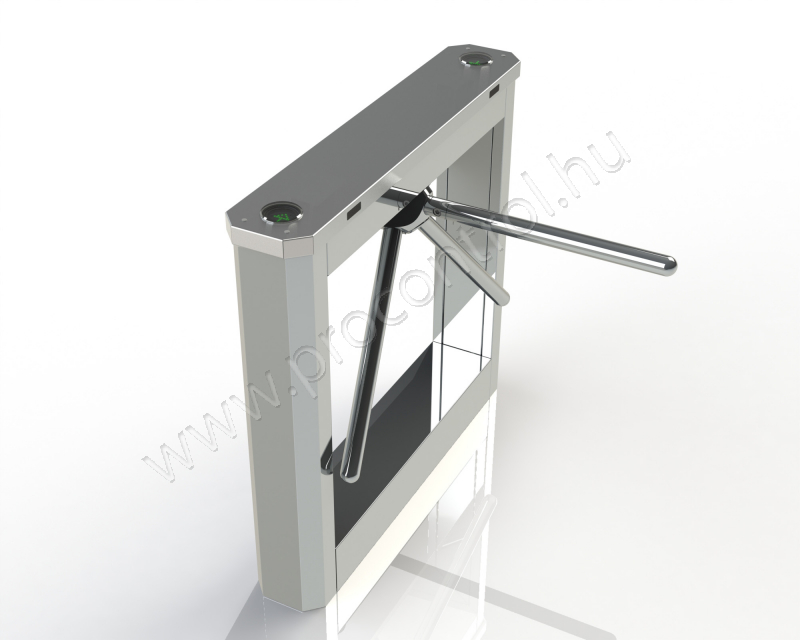

ProxerGate 3EA tripod turnstile w drop arm, automatic arm set back, stainless steel, 24V
Intelligent three-arm entry gate, turnstile
Brief description
ProxerGate 3E(A) is an intelligent, well-designed, aesthetic, self-operating access control gate with three arms, which is used for controlled entry of persons.
ProxerGate 3E gate types are two-legged turnstiles, with solid structure yet slim construction, which can easily fit into either business, office or industrial environment.
ProxerGate 3E enables contact-free passage: the person passing is monitored by optical sensors, and the rotor turns the arms in the direction and at the speed that allows an unobstructed and smooth passage of the authorised crossing. The gate controller has a two-way communication interface, so the movement database, event logs, status, etc. can be queried, the desired operating mode, authorization table, parameter table, etc. can be loaded. The gate has colour leds helping with the direction of passage.
The turnstiles are produced with mirror polished, optionally brushed, stainless steel body and brushed, optionally mirror polished, stainless steel top. ProxerGate turnstiles marked as -EXT can be used outdoors as well.
ProxerGate turnstiles are Procontrol’s own designs and products, manufactured in Hungary, EU.
Do you need wheelchair access, or would your employees and customers enter with larger packages, rolling suitcases or travel bags? Please check our swivel gates and speed gates of the ProxerPort family
Properties
Automatic, motorized turnstile
It can be integrated into an access control system and equipped with a card reader
It can be connected to the fire alarm system
Suitable for two-way movement monitoring
It enables strictly controlled entry
Anti pass-back function
Steel housing
Indoor, optionally outdoor usage
Pass-through capacity approx. 40 persons/ minute
Product has been tested by the fire protection laboratory of ÉMI Non-profit LLC (Hungary's largest complex building and construction materials industry approval, testing, inspection, certification, professional and innovation institution, and a member of a number of European and international organizations), and received the Fire Protection Conformity Certificate.
The product is recommended by MABISZ (Association of Hungarian Insurance Companies).
The ProxerGate 3E turnstile is a self-operated gate with well-designed and aesthetic appearance. It consists of a gear-driven, three-arm rotor unit mounted on a solid, stable frame, a head that includes intelligent electronics, sensors, RFID or bar code/ QR-code or bio-metric readers, and a signal system.
Types
ProxerGate3: turnstile automatically becomes free-rotating upon fire signal - no longer manufactured type ProxerGate3E(A): drop arm/ panic arm version (with automatic arm reset). The ProxerGate 3E turnstile automatically drops one arm at the fire sign providing a clear path. ProxerGate3E(A)-EXT: drop arm type, in outdoor design with minimum IP65 protection
Options
Barriers in fitting stiles can be ordered based on selection table or individual needs
Type resistant to CaCl2 deicer (Special 1.4404 material quality steel, containing molybdenum, resistant to alloy acids and concentrated hydrochloric acid)
Can be connected to fire alarm system
Gate control readers (RFID proximity, barcode/QR code, biometric readers)
Emergency push button
A rain cover/shade roof can be ordered
Light or buzzer/ sounder alarm
Date, time recording
Motion direction recording
Personal identification
Showing name of the person
Recording the reason of exit (lunch break, duty, vacation, etc.)
Showing a work time balance sheet
Access rights check
Event recording
Sound signal
Tamper protection
Remote maintenance
Internet communication
Body or bag search alarm
Functions
Random bag or body search, breathalyzer alarm, random asset protection control function: Proxer access control terminals and ProxerGate turnstiles are also capable of random search / probing alarm function. It is an online function, ProxerNet software is necessary to set this feature.
Two types of operation are possible:
- the gate stops the person. In that case, they must be let in/out manually after the search (e.g. with the guard's card or remote control), thereby confirming that "The search is complete, the employee may enter".
- the gate allows the person to pass. It is the security guards task to detain them.
