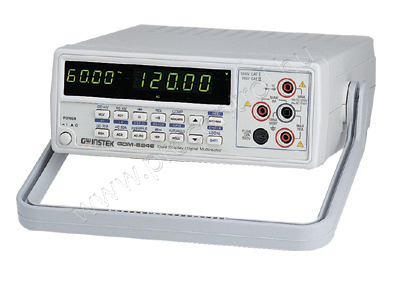

GDM-8246 50000 Counts Dual Display Digital Multimeter

Brief description

50000 Counts Dual Display Digital Multimeter

The GDM-8246 bench-top DMM is equipped with a rich set of features. It offers a 50,000 count meter with a large dual display 7 segment LED. The display is capable of showing two electrical characteristics at once: ACV plus frequency or dBm, DCV plus dBm or ACV ripple. The GDM-8246 carries an extensive list of measurement items - DC Voltage/Current, AC Voltage/Current with true RMS, Resistance, Capacitance, Frequency, Continuity (with beeper), Diode Test, and dBm. Additional measurement functions, such as Max/Min hold, Relative value, and Compare ease setup and diagnosis burdens. The GDM-8246 supports remote control and data-logging using standard IEEE488.2 protocol or proprietary Windows based software via an RS-232C or optional GPIB interface.

Properties

• 50000 Counts Display
• Multi-Function ACV,DCV,ACA,DCA,R,C,Hz,Continuity Beeper,Diode Test,Max/Min,REL,Auto Hold,dBm
• Compare Function
• Dual Display Indicate ACV and Hz,DCV(ACV) and dBm
• DCV and ACV Ripple
• Manual or Auto Ranging
• 0.02% DCV Accuracy
• ACV Measuring Frequency Up to 100kHz
• 20A Current Range With High Energy Fuse Protection
• Auto-Recall Settings upon Power ON
• AC True RMS or AC + DC True RMS
• RS-232C Interface
• Option: GPIB Interface

Technical attributes:
