GW Instek GSG-2000 RF Signal Generator

Brief description

The GSG-2000 series is a basic RF vector signal/ signal generator that covers a frequency range from 9kHz to 6GHz. It is suitable for applications in communications education, RF component testing (such as amplifiers, antennas, and filters), automotive electronic signal testing, and IoT applications. It meets the testing requirements of RF products during production and development stages. Compared to its main competitors, the GSG-2000 series offers superior specifications including a wide amplitude output range of 20dBm to -140dBm, lower phase noise of -117dBc/Hz, and high frequency accuracy with 10ppm frequency stability and 2ppm aging rate. Users have the option to enhance frequency stability and aging rate by selecting the OCXO (Oven Controlled Crystal Oscillator) option, which provides 10ppb stability and 0.1ppm aging rate.
For the signal modulation, the entire series has built-in AM, FM, and PM analog modulation, and GSG-2160 features a digital signal modulation function with a maximum bandwidth of 60MHz digital signal output, supporting ASK, PSK, APSK, QAM, FSK, MSK, User-defined IQ, User-defined FSK modulation signals.

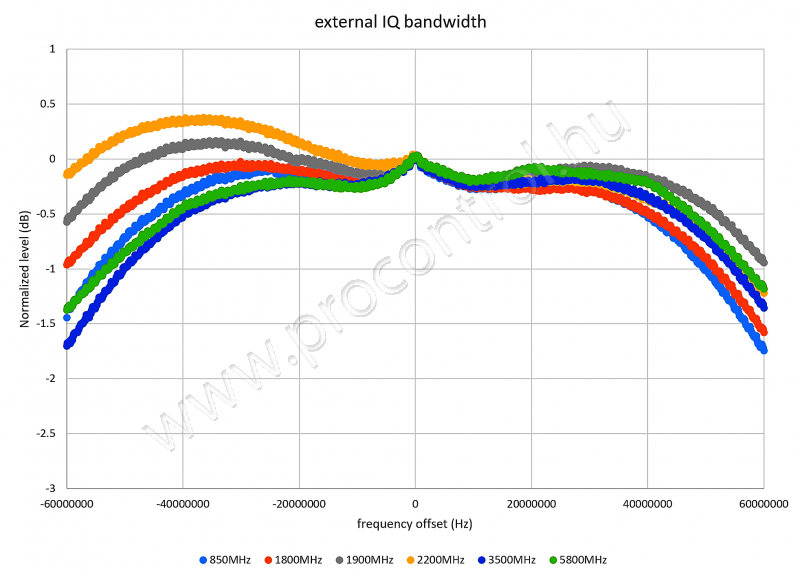

Furthermore, the GSG-2000 series also provides LF signal and Pulse signal output. The LF signal allows users to output Sine, Square, Triangle/Ramp, Gaussian Noise signals, and the Pulse signal output can simulate pulse wave applications of various widths. In addition to the above signal outputs, GSG-2000 also provides AM/FM/digital IQ signal input, as well as independent output ports for digital I or Q signals.

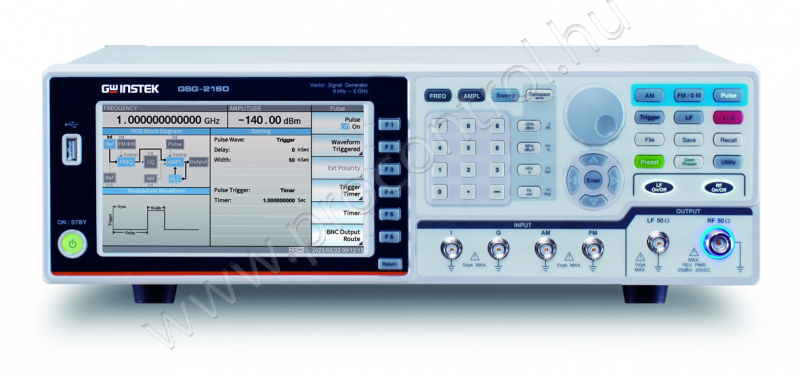

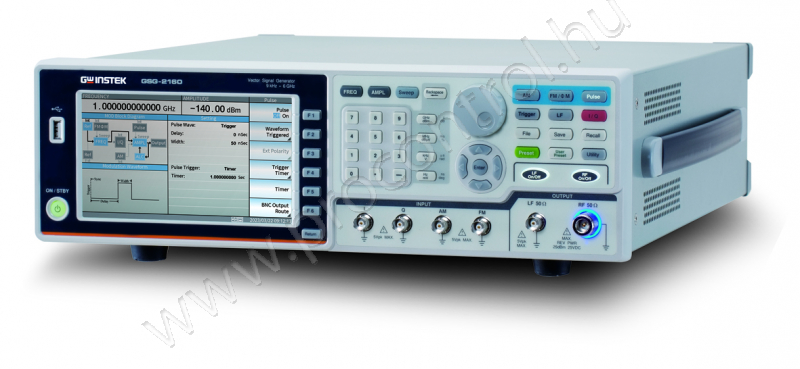

GSG-2000 adopts a seven-inch TFT LCD display that can fully display the parameters and status set by the user, and the series also provides USB, LAN, GPIB (option) communications interfaces, and provides standard SCPI-compatible commands to support remote control . GSG-2000 is designed for 3U high standard rack size.

Properties

• Frequency range: 9kHz ~ 6GHz
• Frequency resolution: 1mHz
• Standard 10ppm frequency stability, 2ppm aging rate
• Optional AUX (OCXO): 10ppb frequency stability, 0.1ppm aging rate
• Amplitude range: -140dBm to +20dBm
• 0.01dBm amplitude setting resolution
• Amplitude setting unit: dBm, dBµV, Vrms
• Phase noise: <-117dBc/Hz (real) @1GHz output and 20kHz offset
• The sampling speed of digital modulation signal (I/Q) output reaches 180MSa/s
• Frequency/amplitude switching speed: ? 5ms
• Built-in LF/RF signal output, Pulse signal output
• The series has built-in AM, FM, PM analog signal modulation functions
• Supports IQ modulation signal output (GSG-2160 only)
• - Up to 60MHz baseband I or Q modulation signal output
• - Up to 120MHz RF I+Q modulation signal output
• - Built-in ASK, PSK, APSK, QAM, FSK, MSK, self-defined IQ/FSK digital signal modulation functions

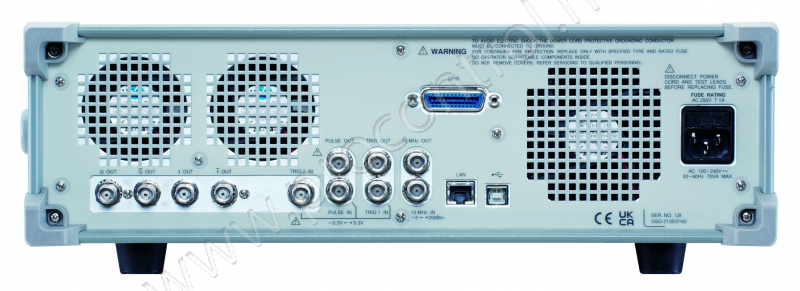

• Provides USB, LAN and GPIB (option), commands comply with SCPI standards

Package contains

• Power cord,
• factory certificate,
• safety information (GSG-2000 no longer provides paper manuals, please download all files from the website)
• Optional:
• RACK FOR GSG-2000 (GRA-447)

Mentés

Types

GSG-2060 (GPIB) (CE)
GSG-2060 (GPIB AUX) (CE)
GSG-2160 (GPIB) (CE)
GSG-2160 (GPIB AUX) (CE)

Functions

• Education
• Automotive
• Industrial of RF components, amplifier, antenna, filter…etc
• Analog/Digital communication system
• IoT (Internet of Things) node, gateway
