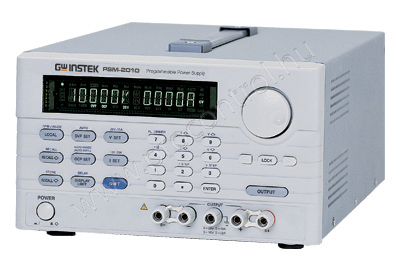

PSM-3004 (CE) Programmable Linear DC Power Supplies

Brief description

The PSM-Series are single output / dual range, 120 or 200W, programmable linear DC power supplies.OVP, OCP, OTP, and output On/Off control protect the PSM-Series and their load from unexpected conditions. High resolution, high regulation, and low ripple are maintained at 1mV/1mA, 0.01%, and <350 Vrms, respectively. Operation and configuration is simplified with a digital interface and a clear LCD display. Standard features include; store/recall output memories, automatic stepping with timers for continuous testing and self-testing and software calibration features to reduce maintenance overhead. SCPI programming, LabVIEW drivers, RS-232C and GPIB interfaces enable easy automated test system integration and remote control. The PSM-Series are an ideal choice for high precision applications such as QA verification and product development.

Technical attributes:

Mentés

Technical Description

Single Output Dual Range Max. 200W
High resolution: 1mV/1mA
0.01% load/line regulation, 350uVrms ripple
Auto step runing with timer setting and 100 Sets memory
Safety design: OVP,OCP & OTP;Output ON/OFF control
Self-test and software calibration
Highly visible vacuum-fluorescent display
Front and rear output terminal
Standard interface : RS-232C, GPIB
Option : European Jack Type Terminal
