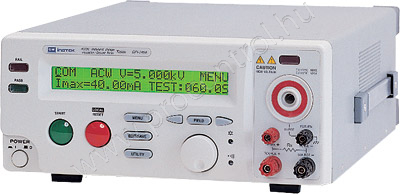

GPT-715A (CE) RS232 Electrical Safety Testers

This product has been discontinued. Its data is still reachable on our site for support purposes. Please find its replacement product in Recommended products section below.

Brief description

The GPT/GPI-700A Series are universal Safety Testers, compliant to all major safety standards such as UL, CSA, JIS, and BS. The Interface has been carefully designed to be user-friendly and fully automatic, ensuring safety and producing reliable test results. The advanced and versatile GPT/GPI-700A Series can be used in production lines, workshops, laboratories, and test sites. Users can select from 5 models according to their testing requirements: starting from the simple GPT-705A for AC Withstanding; the GPT-715A for AC Withstanding + DC Withstanding; the GPI-725A for AC Withstanding + Insulation Resistance; the GPI-735A for AC Withstanding + DC Withstanding + Insulation Resistance; through to the most advanced model, the GPI-745A for AC Withstanding + DC Withstanding + Insulation Resistance + Ground Bond testing. Each model has remote control, supports programming and has a plethora of options delivering fast and reliable test results

Technical attributes:

Mentés

Technical Description

200VA AC Test Capacity
AC/DC Withstanding Voltage Test & Insulation Resistance Test & Ground Bond Test
True RMS Cut-Off Current Measurement
Arc Detection
Zero Crossing Turn-On Operation Switch
Linear Amplifier with Feedback Control to Provide High Regulated Voltage Output
Controllable Ramp-Up Time
Output Voltage and Current Limit Could be set Without HV Output
Output Voltage Adjustable During Test Period
9 pins Remote Control for Start, Reset and Test Result Output
Automatic FAIL Indicator of Alarm Lamp and Buzzer
Scanner Box for Automatic Test (Option)
42A Ground Bond Test (GPI-745A only)
Interface : RS-232C(Standard), GPIB(Option)

Options

• Interface: GPIB
