GLP-1A logic pulsers
This product has been discontinued. Its data is still reachable on our site for support purposes. Please find its replacement product in Recommended products section below.
Brief description

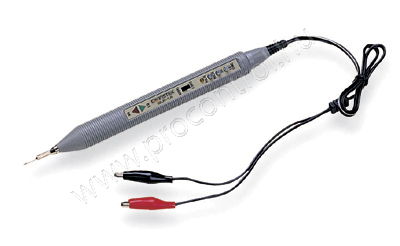

The GLP-1A logic pulsers can be used to perform in-circuit testing of TTL, CMOS, and many other logic devices at a maximum of 50MHz. The GLP-1A is enhanced with a logic probe function with a minimum detectable pulse width of 10 ns, providing enough sensitivity for most applications. A Short 10 sec pulse width assures that no damage will occur to circuits whilst testing. With a weight less than 50g, a non-slip grip and an external sync input all provide comfort and reliability for various
troubleshooting tasks.
Technical attributes:
|
Max Input Frequency
|
50MHz
|
|
Input Impedance
|
120kΩ
|
|
Voltage
|
4V DC (minimum)
18V DC (maximum)
|
|
TTL
|
Logic "1" (HI LED) >3.0V +0.25V Logic "0" (LO LED) <0.75V +0.25V
|
|
CMOS
|
Logic ""1"" (HI LED) >60%Vcc +5%
Logic ""0"" (LO LED) <15%Vcc +5%, <40% +5% (For 7 ~ 18Vcc)
|
|
Synch input Impedance
|
1MΩ
|
|
Impulse Rate
|
0.5/400pps
|
|
Impulse Width
|
10μS
|
|
Output Current
|
100mA
|
|
Square Wave Output
|
5mA
|
|
Output Cover
|
20V DC (maximum 30 sec)
|
|
Input Cover
|
120V DC (maximum 30 sec)
|
|
Measure Point Cover
|
35V DC (maximum 30 sec)
|
|
Dimensions (mm)
|
18(W) x 210(H) x 18(L) mm
|
|
Weight
|
0,05 kg
|
Mentés
Technical Description
Combining a Logic Probe and Pulser Combined into One
Probe for Troubleshooting Digital Circuits
Operating Voltage: 4VDC ~ 18VDC
Maximum Input Signal Frequency: 50MHz
TTL: Logic “1”>3.0V±0.25V, Logic”0”<0.75±0.25V
CMOS: Logic “1”>60%VCC±5%, Logic”0”<15%VCC±5%
Minimum Detectable Pulse Width: 10nsec
Pulser: Sync input impedance 120k?
Pulse Repetition Rate: Switchable 0.5/400Hz
Pulse width: 10µsec
Dimensions & Weight: 18(W)x210(H)x18(D)mm, Approx. 50g
