GWInstek PSW-720L11 Többcsatornás kapcsolóüzemű egyenáramú tápegység

Brief description

The PSW-Multi Series goes beyond the capabilities of our existing PSW Single Output Series, offering a range of multi-channel options to provide enhanced flexibility and versatility. This new series enables us to address the evolving needs of our customers, ensuring that they have access to the latest technological advancements in power supply solutions.
Featuring multi-channel, two-channel, and three-channel models, the PSW-Multi Series offers a seamless and synchronized operation with an output latency of less than 0.1ms between channels within the same voltage module. This allows for simultaneous stimulation of the DUT, making it ideal for applications requiring precise and coordinated testing.
Additionally, the PSW-Multi Series offers a comprehensive selection of low-voltage and high-voltage modules, enabling customers to configure their power supply setups according to their specific requirements. Whether it's low-voltage or high-voltage testing, the PSW-Multi Series provides the flexibility needed to address a wide range of testing scenarios.

Properties

• Multi-channel: maximum 720W for two-channel models and maximum 1080W for three-channel models; output latency between channels with the same voltage module is less than 0.1ms
• Multiple voltage combinations: low voltage combinations can be selected from 30V/40V/80V/160V; high voltage combinations can be selected from 250V/800V
• Advanced web server: executes SCPI commands; controls through the server; data log; edit sequence
• CC/CV priority mode selection is ideal for battery and LED industries
• Adjustable slew rate
• High efficiency and high power density power supply

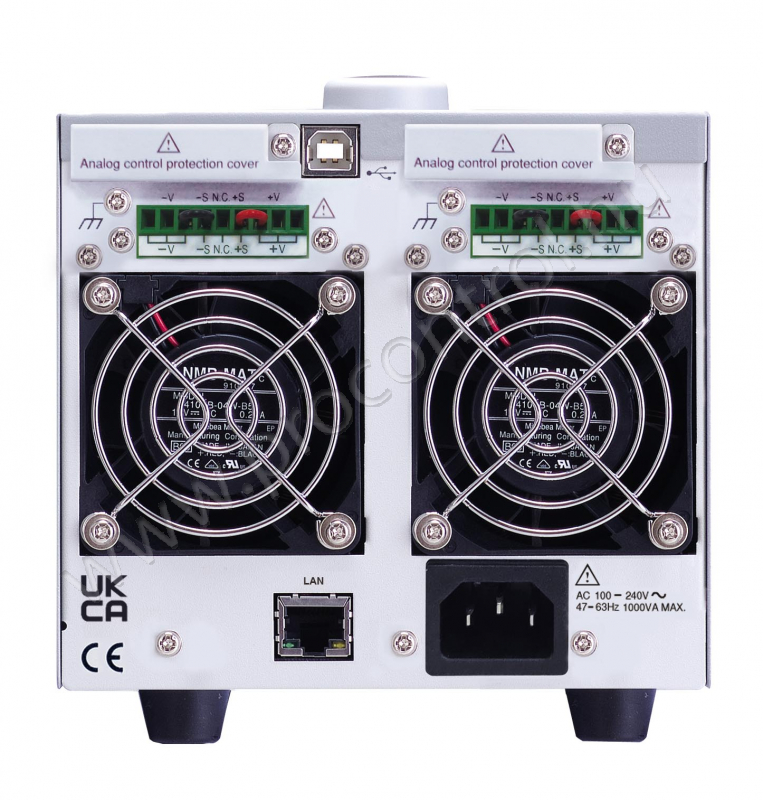

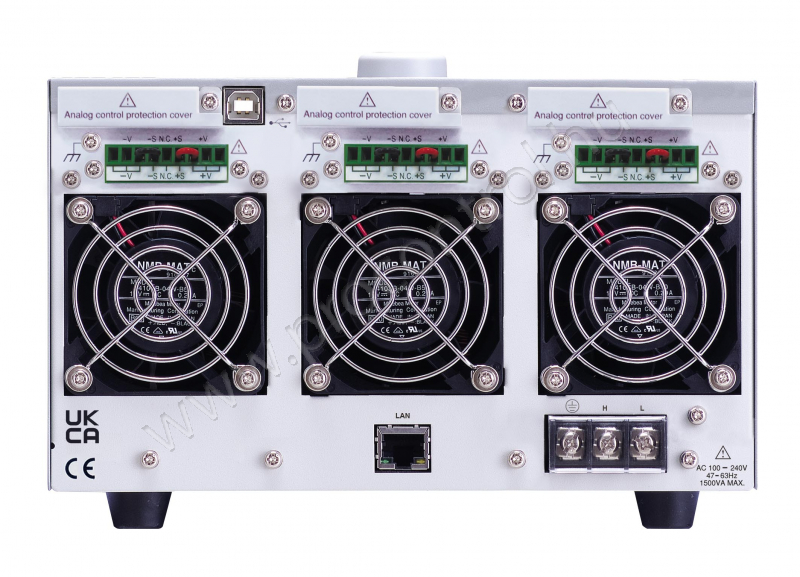

• Standard communications interfaces: LAN, USB, external analog remote control terminal
• Optional communications interfaces: GPIB-USB adapter, RS232-USB cable
• Support LabVIEW Driver

Package contains

• GTL-123 Test Lead x 1(Per Channel for Low Voltage Module 30V/40V/80V/160V), Power Cord x 1(Region dependent), GTL-240 USB Cable ” L “ Type x 1
• PSW-004 Basic Accessories Kit x 1(Low Volage Module 30V/40V/80V/160V), Includes : M4 Terminal screws and washers x 2, Air Filter x 1, Analog control protection dummy x 1, Analog control lock lever x 1, M8 terminal bolts, nuts and washers x 2
• PSW-008 Basic Accessories kit for 250V/800V module
• PSW-009 Output terminal cover for 30V/40V/80V/160V module
• PSW-011 Output terminal cover for 250V/800V module
• PSW-012 High voltage output terminal for 250V/800V module

Mentés

Technical Description

Please note the following selection rules for two-channel and three-channel models:
Two-channel models consist of two voltage modules, while three-channel models comprise three voltage modules.
Naming: PSW-Power-Module-CH1-CHl2(-CH3)
Power: max 720W, max1080W
Module: L - Low Voltage Module (1-30V, 2-40V, 4-80V, 5-160V); H - High Voltage Module: (6-250V, 8-800V)
CH1, CH2 (, CH3): 1-30V, 2-40V, 4-80V, 5-160V, 6-250V, 8-800V

Types

PSW-720L11
PSW-720L12

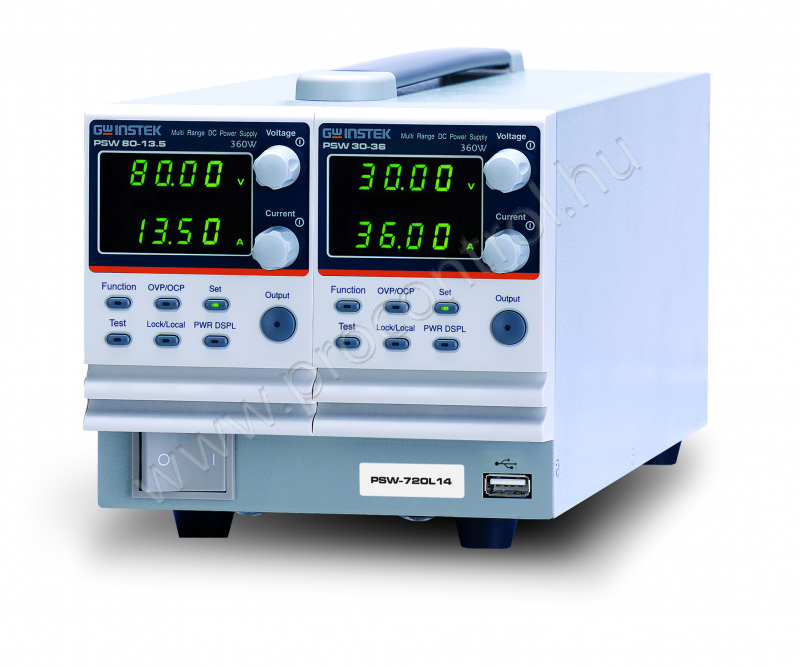

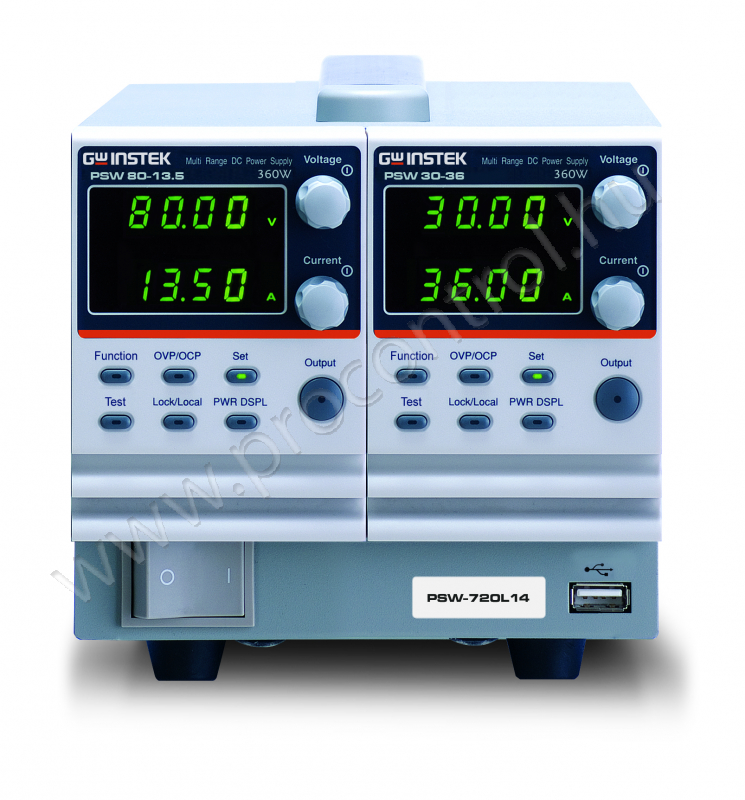

PSW-720L14
PSW-720L15
PSW-720L22
PSW-720L24
PSW-720L25
PSW-720L44
PSW-720L45
PSW-720L55
PSW-720H66
PSW-720H68
PSW-720H88

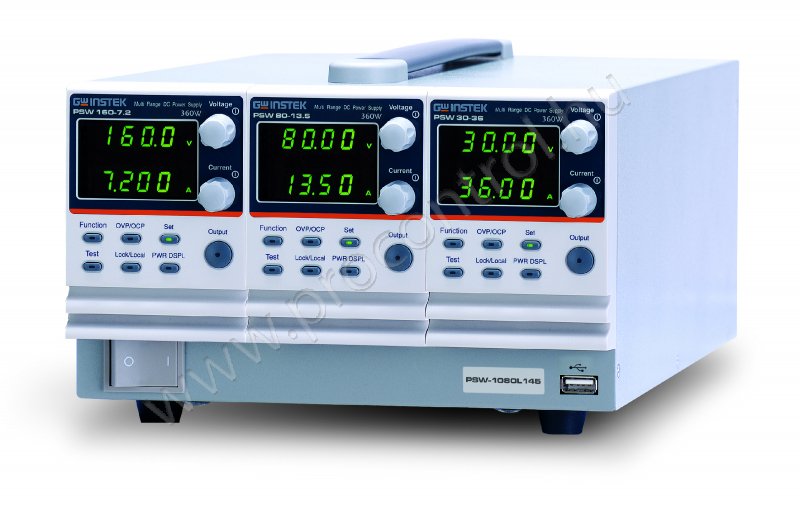

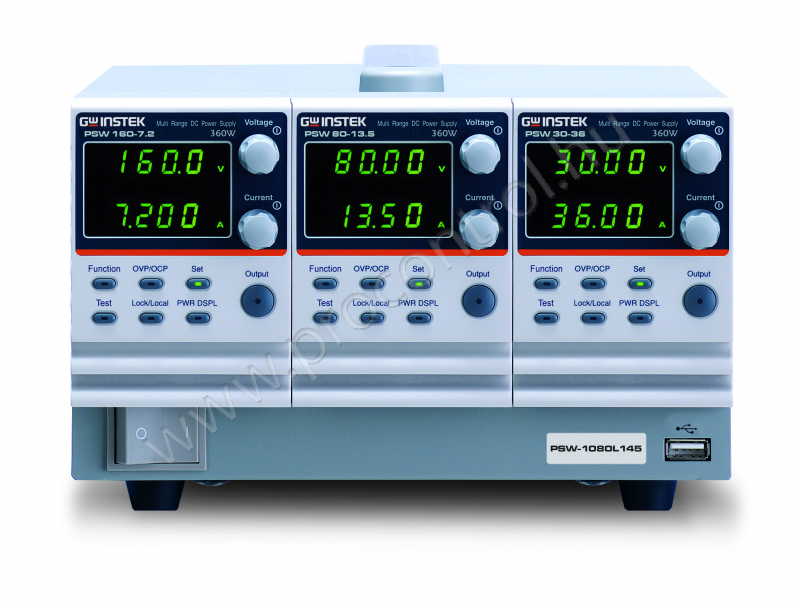

PSW-1080L111
PSW-1080L112
PSW-1080L114
PSW-1080L115
PSW-1080L122
PSW-1080L124
PSW-1080L125
PSW-1080L144
PSW-1080L145
PSW-1080L155
PSW-1080L222
PSW-1080L224
PSW-1080L225
PSW-1080L244
PSW-1080L245
PSW-1080L255
PSW-1080L444
PSW-1080L445
PSW-1080L455
PSW-1080L555
PSW-1080H666
PSW-1080H668
PSW-1080H688
PSW-1080H888

Options

• PSW-001 Accessory Kit
• PSW-002 Simple IDC Tool
• PSW-003 Contact Removal Tool
• PSW-010 Large filter (Type II/III)
• GET-001 Extended Terminal with max. 30A (for Low Voltage Module 30V/40V/80V/160V)
• GET-002 Extended Terminal with max. 10A (for High Voltage Module 250V/800V)
• GET-005 Extended European Terminal with max. 20A (for Low Voltage Module 30V/40V/80V/160V)
• GTL-130 Test lead: 2 x red, 2 x black (for High Voltage Module 250V/800V)
• GTL-248 GPIB Cable, Double Shielded, 2000mm
• GTL-250 GPIB Cable, Double Shielded, 600mm
• GRA-410-E Rack Mount Adaptor
• GUG-001 GPIB to USB Adaptor
• GUR-001A Extended Terminal
